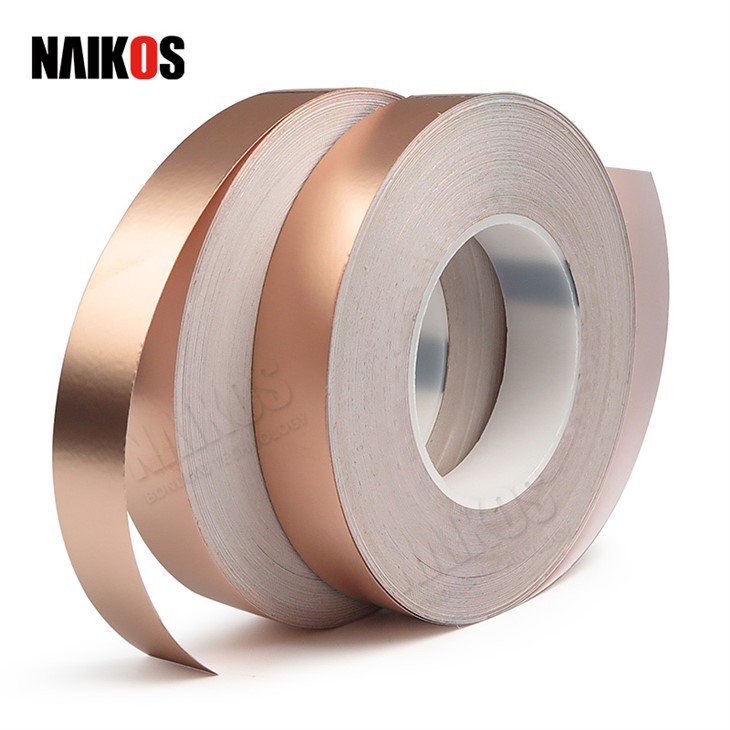

High-Performance Copper Foil Tape



High-performance copper foil tape is a functional material. Copper foil tape consists of a copper foil backing coated with conductive or non-conductive acrylic pressure-sensitive adhesive. It exhibits excellent conductivity performance and EMI shielding capabilities for various applications. Its excellent conductivity and flexibility make it a key shielding solution in the fields of electronic manufacturing, communication equipment, and automotive electronics.





• Super strong conductivity
  Copper tape adopts 99.98% high-purity electrolytic copper foil to ensure efficient current transmission. Significantly improve the grounding efficiency of equipment, reduce signal loss, and is suitable for high-frequency circuit shielding.
  Full-band electromagnetic shielding
  Effectively block high-frequency interference of 5G/IoT devices. Ensure the stable operation of sensitive electronic components in complex electromagnetic environments.
  Double-sided conductive adhesive technology
  Conductive copper tape features nano-level conductive particles added to the adhesive layer, enabling point-to-point conduction between the tape and the substrate. A reliable grounding path can be established without welding, simplifying the installation process.
  Industrial-grade environmental tolerance
  Temperature range -20℃~120℃, resistant to grease, solvents, and UV aging.



Item	NKS-NA/CA050	NKS-NA/CA060	NKS-NA/CA070	NKS-NA/CA090
Color	Copper	Copper	Copper	Copper
Carrier	Copper Foil	Copper Foil	Copper Foil	Copper Foil
Adhesive	Non/Conductive          PSA	Non/Conductive          PSA	Non/Conductive          PSA	Non/Conductive          PSA
Backing Thickness(mm)	0.018	0.025	0.035	0.050
Total Thickness (backing plus  adhesive, mm)	0.05±0.005	0.06 ±0.005	0.07 ±0.005	0.085 ±0.01
Appearance	Excellent,  No oxidation	Excellent,  No oxidation	Excellent,  No oxidation	Excellent,  No oxidation
Electrical Resistance through  Adhesive(ohm/in2)	＜0.05	＜0.05	＜0.05	＜0.05
Holding Power(min/inch)	≥1440	≥1440	≥1440	≥1440
Adhesion to Steel (N/25mm)	＞10	＞10	＞10	＞10
Application Temperature	-20~120℃	-20~120℃	-20~120℃	-20~120℃
Storage Condition	20℃,65% RH	20℃,65% RH	20℃,65% RH	20℃,65% RH
Breaking Strength(lb./in)	27	27	27	27
Flame Retardancy	Pass	Pass	Pass	Pass

Notice: The above technical information and data should be considered representative or typical only and should not be used.

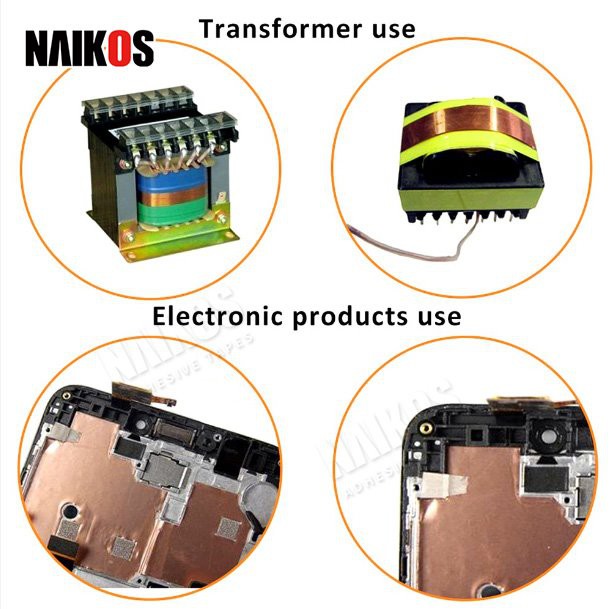

High-performance copper foil tape is an ideal electromagnetic compatibility (EMC) material in the following fields:
PCB board shielding: covers the edge of the circuit board to suppress edge radiation interference.
Cable harness shielding: wraps the harness to reduce electromagnetic leakage.
Plastic chassis EMI protection: sticks to the inner wall of the chassis to create a Faraday cage effect.
New energy battery pack signal isolation: prevents BMS signal crosstalk and improves the safety of electric vehicles.
RFID equipment anti-interference: shields metal interference around the reader and writer to improve recognition accuracy.

Q1: Do you provide free product samples?

A1: We can freely provide 1-2 samples, but the customer will have to pay the freight cost.

Q2: What are your prices and payment terms?

A2: For the trading method, we accept FOB Xiamen, EXW, etc. For payment methods, we accept PayPal, Western Union payments for small orders.

Q3: How long does the shipment take after the order is confirmed?

A3: For orders in small quantities, normally we can arrange the delivery within one week. For orders with large quantities, we will arrange delivery as soon as possible according to the customers' requirements and the situation at the time.

Q4: How about your after-sales service?

A4: We fully guarantee our product quality, and we will provide free technical guidance on operations.

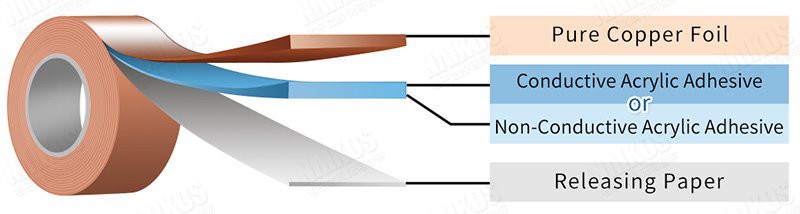

Construction

Product Properties



Item	NKS-NA/CA050	NKS-NA/CA060	NKS-NA/CA070	NKS-NA/CA090
Color	Copper	Copper	Copper	Copper
Carrier	Copper Foil	Copper Foil	Copper Foil	Copper Foil
Adhesive	Non/Conductive          PSA	Non/Conductive          PSA	Non/Conductive          PSA	Non/Conductive          PSA
Backing Thickness(mm)	0.018	0.025	0.035	0.050
Total Thickness (backing plus  adhesive, mm)	0.05±0.005	0.06 ±0.005	0.07 ±0.005	0.085 ±0.01
Appearance	Excellent, No oxidation	Excellent,  No oxidation	Excellent, No oxidation	Excellent,  No oxidation
Electrical Resistance through  Adhesive(ohm/in2)	＜0.05	＜0.05	＜0.05	＜0.05
Holding Power(min/inch)	≥1440	≥1440	≥1440	≥1440
Adhesion to Steel (N/25mm)	＞10	＞10	＞10	＞10
Application Temperature	-20~120℃	-20~120℃	-20~120℃	-20~120℃
Storage Condition	20℃,65% RH	20℃,65% RH	20℃,65% RH	20℃,65% RH
Breaking Strength(lb./in)	27	27	27	27
Flame Retardancy	Pass	Pass	Pass	Pass

Notice: The above technical information and data should be considered representative or typical only and should not be used.
