* Extreme thinness * Good temperature resistance * Excellent weather resistance and chemical resistance * No residue/clean removal
Send Inquiry
Products Description

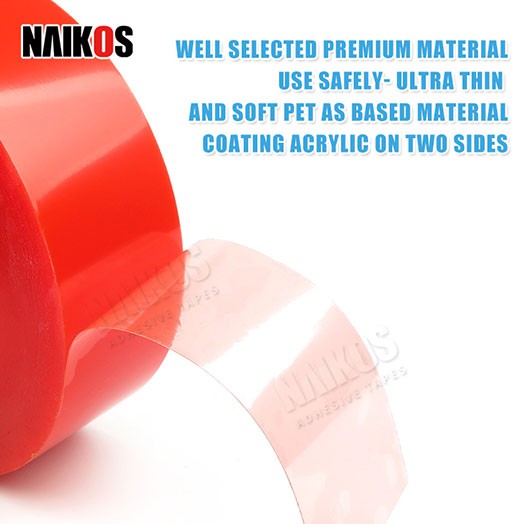

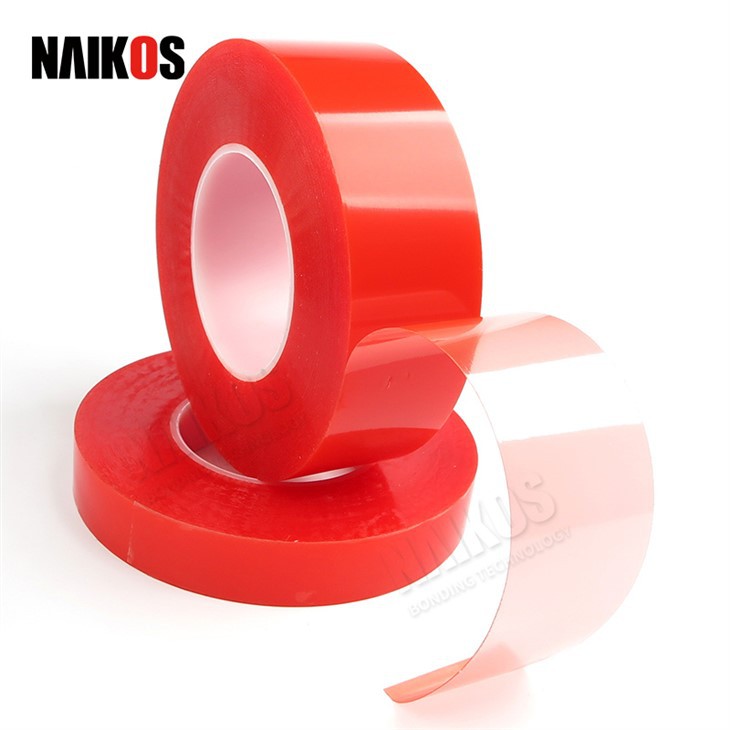

High-performance double-sided PET tape is an industrial-grade adhesive material made of ultra-thin polyester film as the base material and double-sidedly coated with imported high-purity acrylic pressure-sensitive adhesive. With the excellent physical properties of the PET base material and the precise formula design of the adhesive, the double-sided PET tape can still maintain long-lasting and stable adhesion in harsh environments such as high temperature and humidity, chemical corrosion, and mechanical vibration. It is an ideal choice for replacing traditional processes such as screws and welding to achieve lightweight and traceless assembly.
Products Feature
Extreme thinness: The thickness of the PET base material can be precisely controlled to ±2μm, and the uniform coating technology of the adhesive layer ensures that the bonding strength does not decay in the ultra-thin state, meeting the strict requirements of space restrictions for precision electronic assembly such as mobile phone screens and flexible circuit boards.
Good temperature resistance: PET tape can usually withstand temperatures from -20°C to 120°C or even higher (depending on the specific adhesive and thickness).
Excellent weather resistance and chemical resistance: PET adhesive tape resists UV rays, moisture, and corrosion from various solvents and greases, and has a long service life.
Electrical insulation: PET itself is a good insulator and is suitable for the electronic and electrical fields.

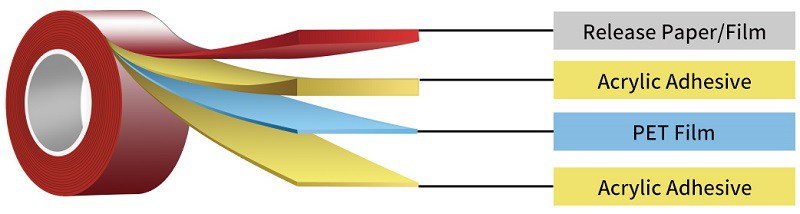

Products Construction
Products Properties
| Item | NKS-5965C-B |
| Color | Clear |
| Carrier | PET |
| Adhesive | Acrylic adhesive |
| Total Thickness(mm) | 0.205 |
| Peel Adhesion (N/25mm) | 18 |
| Initial Tack (mm) | ≤100 |
| Temperature Resistance (℃) | -20-120 |
| Width (mm) | 4-1240(custom available) |
| Length (m) | 50(custom available) |
Notice: The above were reference values. For detailed information, please contact HONGFU.
Products Application
Consumer electronics: OLED screen lamination, graphite heat sink fixing, camera module assembly
Automotive manufacturing: seamless installation of interior panels, car logo bonding, sensor sealing
Industrial assembly: metal nameplate pasting, solar backplane lamination, shockproof cushion installation
Building and home:
Decorative material installation: Bonding of mirrors, hooks, lightweight picture frames, skirtings, etc.
Temporary fixation of glass: Auxiliary positioning during construction.
Key Points For The Use and Storage of Double-Coated PET Tape
Surface treatment: Make sure the surface to be bonded is clean, dry, and free of oil, dirt, and dust. Wipe or use a treatment agent if necessary.
Pressure: Apply uniform and sufficient pressure (such as rolling) after bonding to ensure that the tape is in full contact with the bonded surface.
Time: It usually takes a certain amount of time (24-72 hours) to reach the final bonding strength, and avoid excessive load during this period.
Storage: Store in a cool and dry place (recommended 23±5℃, 50±10%RH), avoid direct sunlight and heavy objects. Pay attention to the protection of the release paper/film.
High-performance double-sided PET tape is based on material science breakthroughs. Through the precise matching of ultra-thin PET substrates and customized adhesives, it provides highly reliable, low-cost, and environmentally friendly bonding solutions for electronic intelligent manufacturing, new energy vehicles, and other fields. Contact us now to get free samples and industry-customized solutions!
Products Construction
Products Properties
| Item | NKS-5965C-B |
| Color | Clear |
| Carrier | PET |
| Adhesive | Acrylic adhesive |
| Total Thickness(mm) | 0.205 |
| Peel Adhesion (N/25mm) | 18 |
| Initial Tack (mm) | ≤100 |
| Temperature Resistance (℃) | -20-120 |
| Width (mm) | 4-1240(custom available) |
| Length (m) | 50(custom available) |
Notice: The above were reference values. For detailed information, please contact HONGFU.
