* Stable and economical * Complete thickness standard is available * Excellent adhesion strength and thermal conductivity
Send Inquiry
Product Description

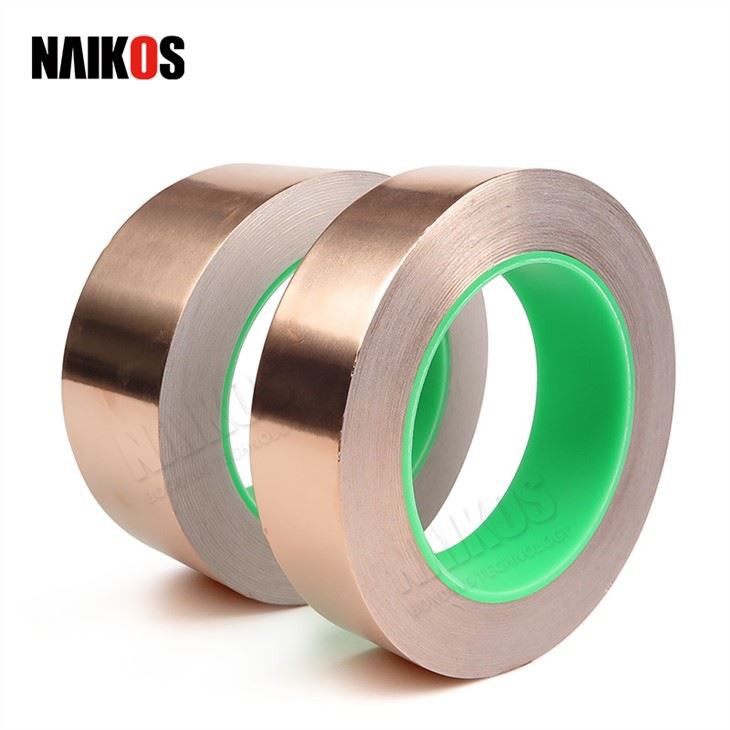

Copper foil conductive adhesive tape is made from high-quality copper foil as backing and single side coated with conductive acrylic pressure-sensitive adhesive.
Features
* Complete thickness standard is available
* Various structures are for different applications
* Stable and economical
* The excellent adhesion strength and thermal conductivity
* Protect from X rays, very good ductility
* Especially for FFC area use
Application
Copper foil conductive adhesive tape is Typically used to wrap and shield multi-pair process control, computer, and instrumentation cables such as Coaxial CATV cables, LAN cables, and HDMI cables.

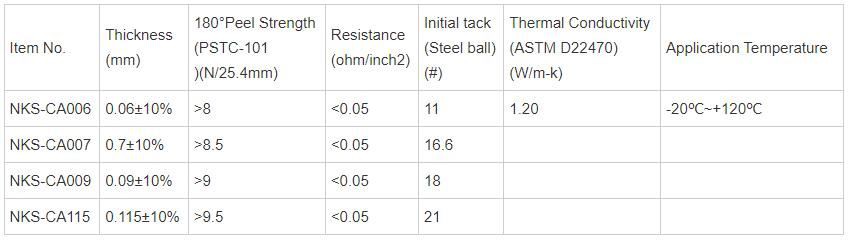

Physical Properties
Item No. | Thickness (mm) | 180°Peel Strength (PSTC-101 )(N/25.4mm) | Resistance (ohm/inch2) | Initial tack (Steel ball) (#) | Thermal Conductivity (ASTM D22470) (W/m-k) | Application Temperature |
NKS-CA006 | 0.06±10% | >8 | <0.05 | 11 | 1.20 | -20℃~+120℃ |
NKS-CA007 | 0.7±10% | >8.5 | <0.05 | 16.6 | ||
NKS-CA009 | 0.09±10% | >9 | <0.05 | 18 | ||
NKS-CA115 | 0.115±10% | >9.5 | <0.05 | 21 |
These values are measured values and not guaranteed values.
FAQ
Q1:How could I buy the products I need if there is no price on the website?
A1: You can send your inquiry to us about the products you need, our sales will reply to you within 24 hours to help you make the order.
Q2:How long could I get a reply to my inquiry?
A2: You will get a reply within 24 hours.
Q3: What kind of warranty do you offer?
A3: The product offers a quality warranty.
Q4:How long will it take to deliver goods?
A4: We will start preparing goods when we get your bank receipt. The package will be shipped out in 2-10working days after we get your payment.
Q5: What kind of packaging do you offer?
A5: During the packaging process, preventive measures will be taken by us to assure that the goods are in a good condition during storage and delivery.
HONGFU CO., LTD, is a high-tech company in mainland China, which is specialized in copper foil tape, copper conductive adhesive tape, ESD Tape, has more than 12 years of rich experience in this field, HONGFU has its advantage D&R, quality monitoring, sales system, and customer service after the sale. Co-operate with us, you will enjoy one-stop purchasing.
