* Superior electrical insulation. * Superior dimension stability. * Superior heat resistance. * Good processability.
Send Inquiry
Product Description

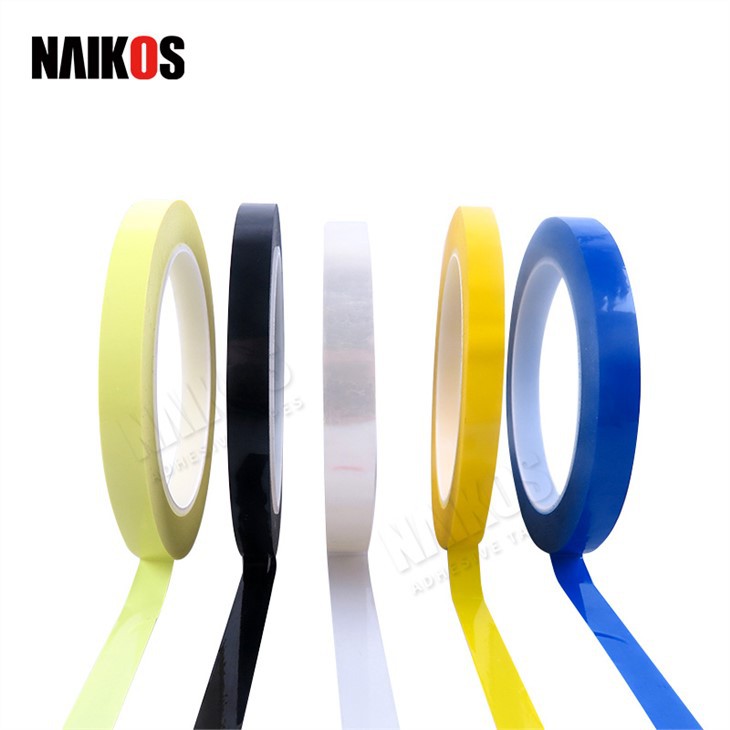

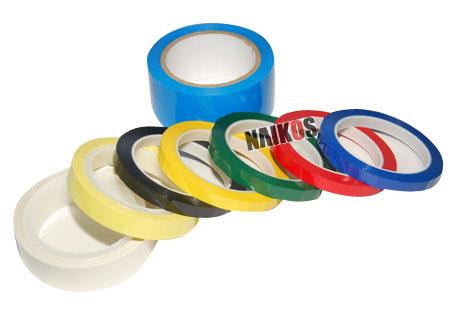

Mylar adhesive tape for electric insulation is made of polyester film as backing and a single side coated with acrylic adhesive. is used for outer/interlaminar insulation of transformers and coils, also used for a soft bag of the lithium battery bandage, such as in the protection board and the bandage between the batteries, then play a fixed role of fire insulation.
Features
* Superior electrical insulation.
* Superior dimension stability.
* Superior heat resistance.
* Good processability.
Application

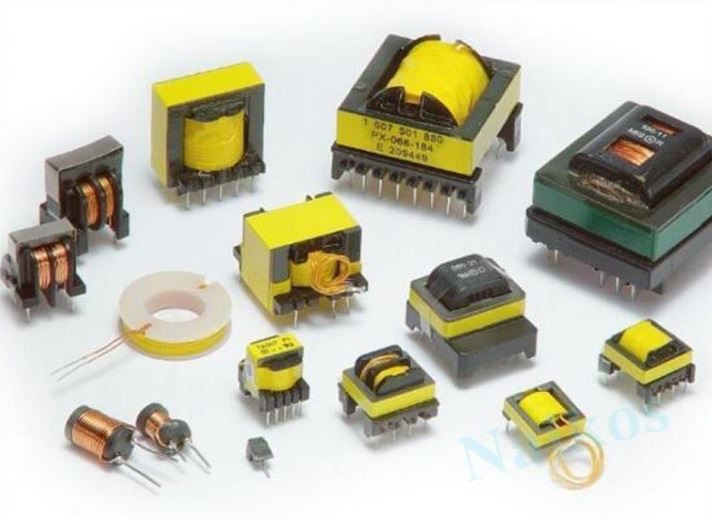

Mylar adhesive tape for electric insulation is mainly used for Electrical insulation of transformers and coils. High-voltage isolation between the motherboard circuit and the enclosure of the switching power supply.
Available Color
Green, Red, Yellow, Clear, Blue...
Construction

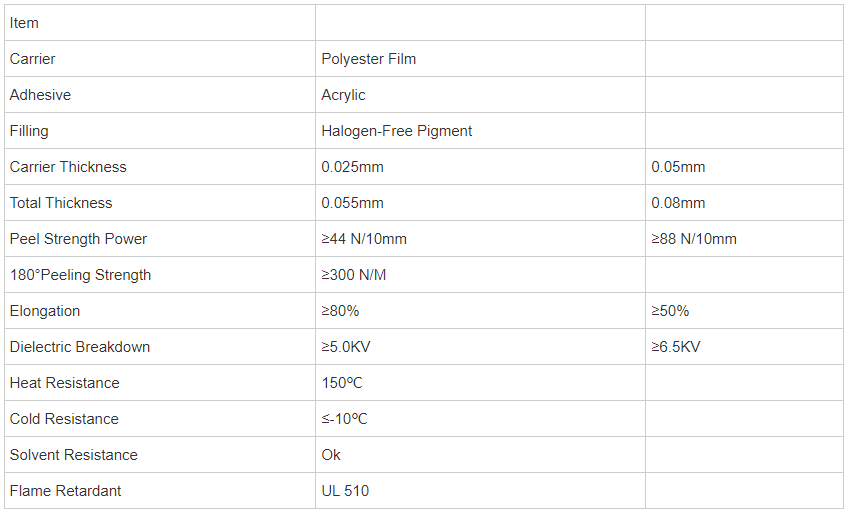

Physical Properties
Item | ||
Carrier | Polyester Film | |
Adhesive | Acrylic | |
Filling | Halogen-Free Pigment | |
Carrier Thickness | 0.025mm | 0.05mm |
Total Thickness | 0.055mm | 0.08mm |
Peel Strength Power | ≥44 N/10mm | ≥88 N/10mm |
180°Peeling Strength | ≥300 N/M | |
Elongation | ≥80% | ≥50% |
Dielectric Breakdown | ≥5.0KV | ≥6.5KV |
Heat Resistance | 150℃ | |
Cold Resistance | ≤-10℃ | |
Solvent Resistance | Ok | |
Flame Retardant | UL 510 |
Our advantages
1. Low MOQ
2. OEM and ODM services available.
3. Factory sale directly with much competitive price.
4. Good Quality Control. There are 3 times quality checking before delivery.
5. Free samples are available. Even customized die-cut parts are also available. We guarantee that the samples and mass production tapes would be satisfied.
6. All of the customers’ samples/orders would be recorded and maintained in secrecy. Customers can re-order with convenience and satisfaction.
CNTAPES is one of the excellent manufacturers and suppliers of yellow mylar tape, and mylar insulation tape in China, which is equipped with a professional factory and advanced equipment. We aim to provide you with high-quality products with well heat resistance and strong durability which is easy to process. Welcome to buy tapes with us at a competitive price.
