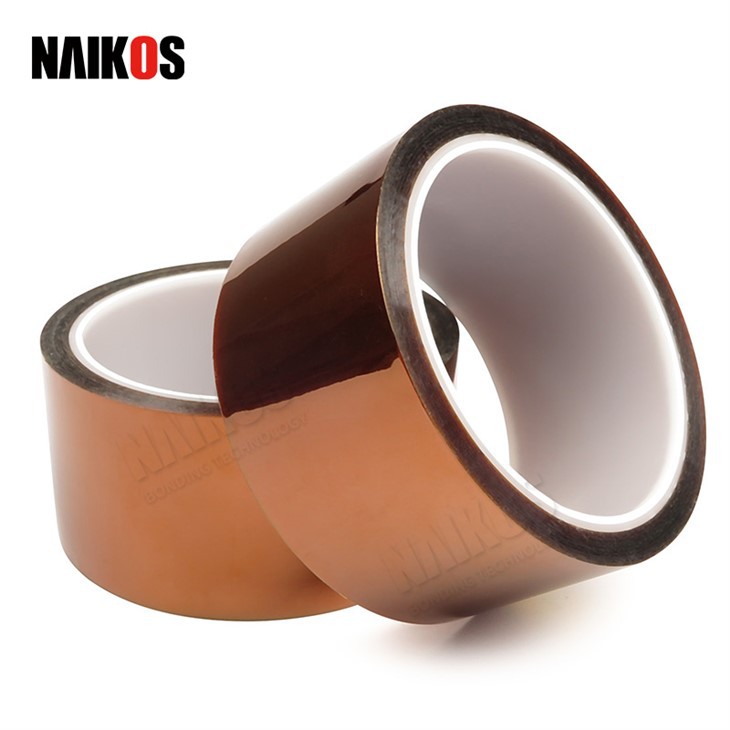

Polyimide High Temperature Masking Tape - Premium China Factory Supplier

* High electrical strength * Peeled off without leaving an adhesive residue * Up to 500℉/260℃ temperature resistance * Class H insulation

Send Inquiry

CNTAPES is one of the excellent manufacturers and suppliers of polyimide high temperature masking tape in China, which is equipped with a professional factory and advanced equipment. We aims at providing you with high quality products with well heat resistance and strong durability which is easy to process. Welcome to buy tapes with us at competitive price.

Products Description

Polyimide high-temperature masking tape, also known as Kapton tape, is a special tape with polyimide film as the base material and coated with high-temperature resistant silicone or acrylic adhesive. With its extreme temperature tolerance, excellent insulation performance, and ultra-thin and flexible characteristics, polyimide tape has become the core material in high-end fields such as electronic manufacturing, aerospace, and new energy.

Feature

* High electrical strength
* Peeled off without leaving an adhesive residue
* Kapton polyimide tape up to 500℉/260℃ temperature resistance
* Class H insulation
* Width: customslit

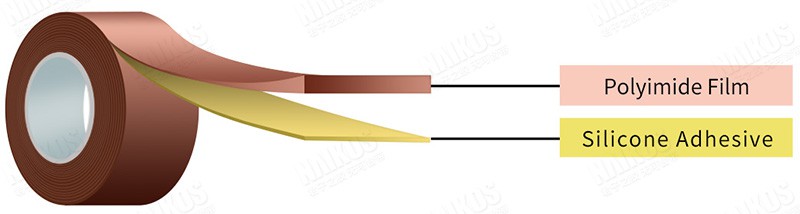

Products Construction

heat tape

Physical Properties

Item	NKS- 0115K	NKS- 0125-KT	NKS- 0135KT	NKS- 0230KT	NKS- 0335KT	NKS- 0450KT	NKS-01ESD
Color	Amber	Amber	Amber	Amber	Amber	Amber	Amber
Carrier	Polyimide	Polyimide	Polyimide	Polyimide	Polyimide	Polyimide	Polyimide
Adhesive	Silicone	Silicone	Silicone	Silicone	Silicone	Silicone	Silicone
Carrier Thickness (mm)	0.025	0.025	0.025	0.05	0.075	0.125	0.025
Total Thickness(mm)	0.040	0.050	0.060	0.080	0.11	0.16	0.060
Tensile Strength (N/25mm)	160	100	115	185	280	450	115
Adhesion (N/25mm)	3	5.0	5.5	5.5	6	6	5.5
Corrosion Resistance	1.0	1.0	1.0	1.0	1.0	1.0	1.0
Temperature Resistance(℃)	-20℃-+260℃
Width(mm)	2~500(Custom Slit Available)
Length(m)	33m/66m

Note: The above data are general values of product testing and are for reference only and do not represent the actual values of this product.

Application

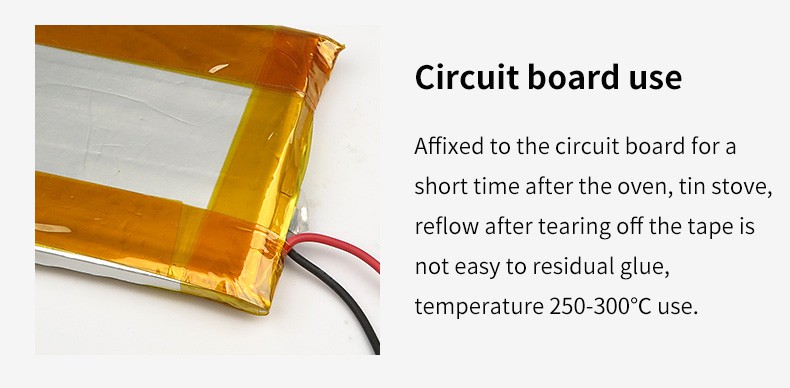

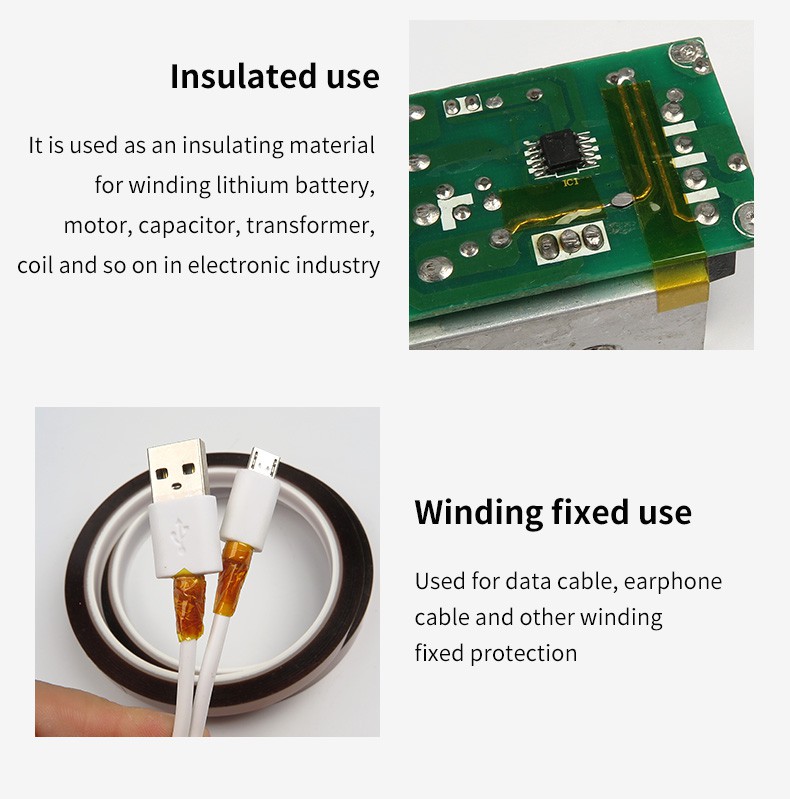

Electronic component protection: prevent flux contamination during welding and shield electromagnetic interference (EMI).
New energy vehicle three-electric system: power battery module insulation, motor coil binding, and meet automotive grade aging resistance requirements.
Aerospace equipment: satellite cable insulation, engine sensor fixation, pass MIL-STD-810G extreme environment test.
Industrial high temperature equipment: 3D printing hot bed lamination, injection mold anti-sticking, and withstand repeated thermal cycle shock.

polyimide tape

heat tape

Thermal Tape

Scientific indicators for purchasing
Substrate thickness: Too thin and easy to tear, too thick affects flexibility
Adhesive type: Silicone adhesive has a higher temperature resistance than acrylic adhesive, but the initial adhesion is lower (ASTM D3330 peel force test)
Voltage resistance level: Select according to the application voltage (such as 6kV/mm for less than 1kV, and customization is required for more than 10kV)
Certification standards: UL certification (flammability), RoHS 2.0 (no harmful substances), ISO 9001 (quality management system), all three certificates are preferred
Surface treatment: Single-sided/double-sided conductive treatment (resistance value <0.1Ω/sq) to meet EMI shielding requirements, select according to electromagnetic compatibility requirements

Industry trends and technological innovations
Functional composite: Thermally conductive polyimide tape with integrated thermal conductive fillers (such as boron nitride) solves the heat dissipation problem of 5G chips.
Intelligent cutting: Laser pre-cut tape (accuracy ±0.1mm), adapted to the needs of automated mounting production lines.

Polyimide high-temperature masking tape has become the "invisible guardian" of the high-end manufacturing industry with its irreplaceable high-temperature resistance and insulation performance. When choosing, it is necessary to combine the actual working temperature, media compatibility, and certification requirements, and give priority to suppliers with transparent technical data and customized service capabilities. Contact us now to get the polyimide tape solution that suits your scenario!

FAQ

1. Sample Free?
Re: We provide samples for free, but you need to bear the express cost.
2. Can our private logo/label be printed on the packaging?
Re: Yes, your own private logo/ label can be printed on the packaging upon your legal authorization. We supported OEM service according to our client's requirements for many years.
3. When can I get the price?
Re: We usually quote within 24 hours after getting your inquiry if you are urgent to get the price. Please call us or tell us by email so that we can take your inquiry as a priority.
4. OPP Tape: How long does the production and shipment of the order take?
Re: Within 10-15 days after receipt of deposit.
5. What materials need to be provided to get an accurate quotation?
Re: You need to provide the length, width, thickness, and quantity of the product. We will provide you with the best price through the information you provide.
6. What are your payment terms?
Re: Payment terms: TT 30% deposit advance,70% Balance before shipping

Packaging & Shipping
We can provide different kinds of packaging according to customers' requests, such as labeling, barcode, individual packing, and mailbox packing. You can give us your instructions, and we will follow up on your requests.
Different shipping ways are available; small quantity orders will be delivered to you by express, and bulk goods will be delivered to you by sea. We will talk about the delivery method before we dispatch the goods.

Products Construction

heat tape

Physical Properties

Item	NKS- 0115K	NKS- 0125-KT	NKS- 0135KT	NKS- 0230KT	NKS- 0335KT	NKS- 0450KT	NKS-01ESD
Color	Amber	Amber	Amber	Amber	Amber	Amber	Amber
Carrier	Polyimide	Polyimide	Polyimide	Polyimide	Polyimide	Polyimide	Polyimide
Adhesive	Silicone	Silicone	Silicone	Silicone	Silicone	Silicone	Silicone
Carrier Thickness (mm)	0.025	0.025	0.025	0.05	0.075	0.125	0.025
Total Thickness(mm)	0.040	0.050	0.060	0.080	0.11	0.16	0.060
Tensile Strength (N/25mm)	160	100	115	185	280	450	115
Adhesion (N/25mm)	3	5.0	5.5	5.5	6	6	5.5
Corrosion Resistance	1.0	1.0	1.0	1.0	1.0	1.0	1.0
Temperature Resistance(℃)	-20℃-+260℃
Width(mm)	2~500(Custom Slit Available)
Length(m)	33m/66m
