* Very good thermal conductivity * Soft and compressibility * Easy to assemble * Flexible and conformable. Ideal for uneven surfaces. * Stable and economical with different thicknesses and constructions.
Send Inquiry
Product Description

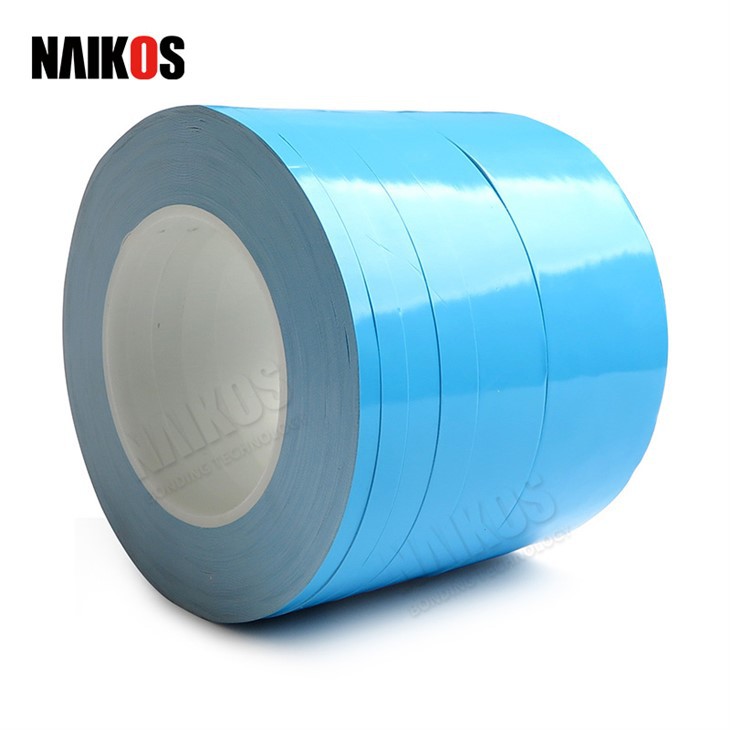

Blue double sided thermal conductive adhesive tape is made of advanced thermal conductive PSA. They satisfy the demand for high adhesion and excellent thermal conductive efficiency by providing a preferential heat-transfer path between heat-generating components and heat sinks or other cooling devices.
Feature
The thermal tape makes it easily distinguishable from other types of adhesive tape, ensuring that it is used only for its intended purpose. The tape features high thermal conductivity and efficient heat dissipation, making it ideal for use in demanding thermal applications.
Thermal conductive tape is easy to use, simply cut to the desired length, peel off the protective backing, and apply it to the surface. The thermal adhesive tape is strong and durable, ensuring that your components remain securely mounted even in high-stress environments.
Product Construction
Physical Properties
| Item | NKS-## | NKS-##N | Test Method |
|
Carrier |
Glass Fabric | N/A | --- |
|
Adhesive |
Thermally Conductive PSA | Thermally Conductive PSA | --- |
| Total thickness(mm) | 0.10~0.50 | 0.05~0.40 | ASTM D374 |
| Color | White | White | VISUAL |
| Release Liner | Blue PE Film | White Release Paper | VISUAL |
|
Adhesion (N/25mm) |
12~18 | 12~18 | PST-101 |
|
Thermal Conductivity(W/m-k) |
1.2 | 1.2 | ASTM D22470 |
|
Voltage Resistance(KV/mm) |
3.5~8.0 | 3.5~8.0 | ASTM D149 |
|
Temperature Resistance(Short Term, ℃/℉) |
120(℃) 248(℉) |
120(℃) 248(℉) |
EN344 |
|
Standard width(mm) |
2~1030(Customized Available) | ||
|
Standard length(m) |
25/50(Customized Available) | ||
Notice: The above were reference values. For detailed information, please contact HONGFU.

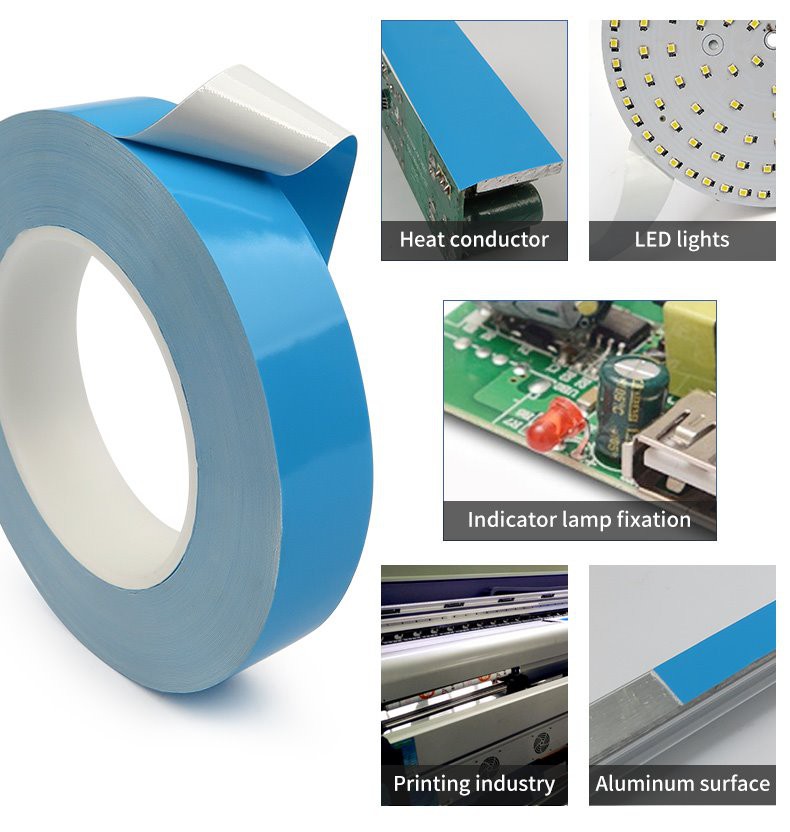

Application
Blue double sided thermal conductive adhesive tape is suitable for use in a wide range of applications, including automotive, industrial, and electronic devices. It is also safe for use in food packaging applications, making it a versatile and reliable choice for a variety of thermal management needs.
Blue double sided thermal conductive adhesive tape is an excellent choice for mounting components that require efficient thermal management. It is easy to use, durable and reliable, making it a popular choice for a wide range of applications.
| Item | NKS-## | NKS-##N | Test Method |
|
Carrier |
Glass Fabric | N/A | --- |
|
Adhesive |
Thermally Conductive PSA | Thermally Conductive PSA | --- |
| Total thickness(mm) | 0.10~0.50 | 0.05~0.40 | ASTM D374 |
| Color | White | White | VISUAL |
| Release Liner | Blue PE Film | White Release Paper | VISUAL |
|
Adhesion (N/25mm) |
12~18 | 12~18 | PST-101 |
|
Thermal Conductivity(W/m-k) |
1.2 | 1.2 | ASTM D22470 |
|
Voltage Resistance(KV/mm) |
3.5~8.0 | 3.5~8.0 | ASTM D149 |
|
Temperature Resistance(Short Term, ℃/℉) |
120(℃) 248(℉) |
120(℃) 248(℉) |
EN344 |
|
Standard width(mm) |
2~1030(Customized Available) | ||
|
Standard length(m) |
25/50(Customized Available) | ||
Notice: The above were reference values. For detailed information, please contact HONGFU.
