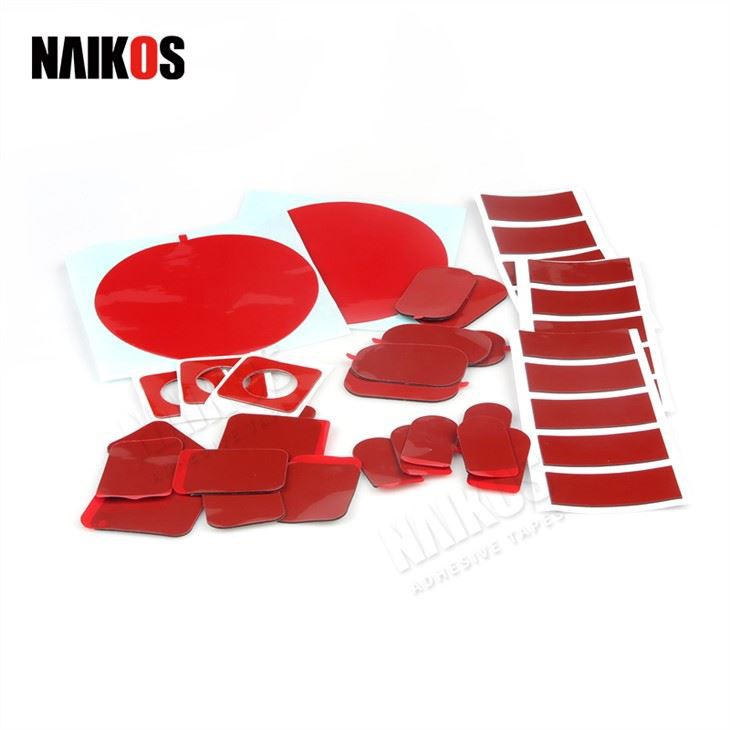

Die Cut High Bond Double Sided Acrylic Foam Tape



Product Description

Die-cut high bond double-sided acrylic foam tape is based on complete acrylic acid as substrate and laminated with paper/film as release liner.

Features

* Strong Adhesive

* Peel strength

* Good weather resistant

* Environment-friendly

* No import restriction

* Easy Handle

Application

Die-cut high bond double-sided acrylic foam tape applies to automotive interior parts, door trim, trim strip, front trim, Can also be used to replace mechanical fasteners in the appliance, automotive, sign, graphics, glass curtain wall attachment, and other manufacturing applications.

Construction

Acrylic PSA Acrylic Foam Acrylic PSA Release Film

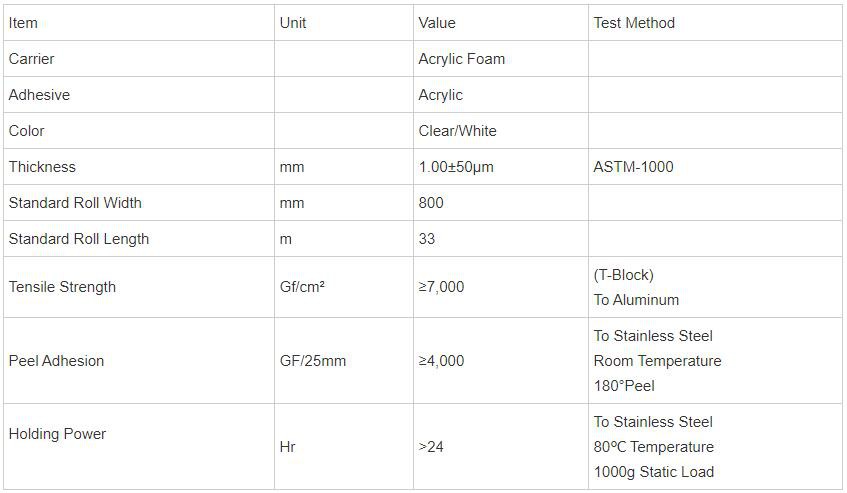

Physical Properties

Item	Unit	Value	Test Method
Carrier		Acrylic Foam
Adhesive		Acrylic
Color		Clear/White
Thickness	mm	1.00±50μm	ASTM-1000
Standard Roll Width	mm	800
Standard Roll Length	m	33
Tensile Strength	Gf/cm²	≥7,000	(T-Block) To Aluminum
Peel Adhesion	GF/25mm	≥4,000	To Stainless Steel Room Temperature 180°Peel
Holding Power	Hr	>24	To Stainless Steel 80℃ Temperature 1000g Static Load

These values are measured values and not guaranteed values.

Shelf Life

Product shelf life is 2 years from the date of manufacture when stored at room temperature conditions (72°F [22°C] and 50% RH) in the product's original packaging.

Available Sizes

Width: Can be Customized

Length: Can be customized

Custom Sizes: Please feel free to contact the NKS sales representative if you need customized sizes or die-cut parts.
