* Outstanding adhesion to many automotive paints and MSE (Medium surface energy) plastics * Optimized acrylate foam core for easy application and good adaptation to component surfaces * Temperature, weather, UV, and solvent resistance * The foam core gives good wet-out properties and adaption to complex geometries * Additional EX4008 offers good internal strength and good long-term stability
Send Inquiry
Products Description

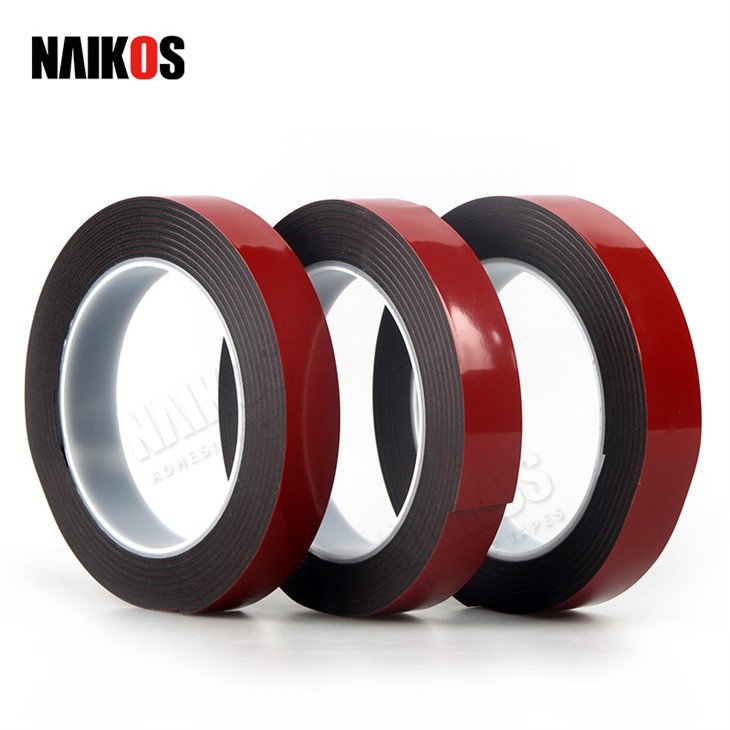

Double-sided acrylic foam tape EX4008 for automotive consists of black foamed acrylic adhesive with additional acrylic adhesive on both sides for automotive surfaces like powder coatings and nanoparticle-based clear coatings. Typical applications are attachments of rigid add-on parts such as stone chip moldings, fender moldings, or wheel arch extensions.
Product Feature
* Acrylic plus tape EX4008 demonstrates a very good adhesion to modern surfaces for automotive which are difficult to adhere.
*One acrylic foam tape side is covered with a special, high performance adhesive for automotive paint systems, the acrylic adhesive offers good adhesion to low-energy-surface substrates without additional primer treatment.
*The foam core gives good wet-out properties and adaption to complex geometries.
*Additional EX4008 offers good internal strength and good long-term stability.
Products Advantages
The automotive acrylic plus tape is manufactured using a special process of producing a homogeneous system of high performance acrylic adhesive for new paint systems.
The product can be used for numerous applications on exterior vehicles and can balance large part deviations. Further, it is suitable for modern and robot-based applications.
The unique viscoelastic nature of acrylic foam gives it a high cohesive strength, combined with excellent shock and weathering resistance. To optimize bond strength, the surfaces must be clean, dry, and smooth with a good fit between the part and substrate. Decisive for good adhesion performance is full surface contact between tape and substrate. Contact is achieved by pressurization. In practice a pressure between 10 - 50 N/cm² is usually needed and an application temperature between 18 - 40 °C is also necessary. During application, add-on parts and tapes must have the same temperature.
Products Construction
Physical Properties
| Core | Acrylic Plus Foam, density (633 kg/m³) | ||||
| Color | Black | ||||
| Thickness (without liner) | 0.76 mm + / - 0.1 mm | ||||
| Width | Tolerance + / - 0.4mm | ||||
| Liner | F - Red polyethylene foil, both sides siliconized T - Version with one side siliconized red polyethylene foil, good for tabbing tape bonding, and additional, one side siliconized transparent polyethylene liner, to be removed before application. This liner is available for die-cuts, level wound rolls, and planetary rolls from 100 mm width upwards. |
||||
| Adhesive to add-on part (non-linear side) |
Acrylic adhesive VR-1 | ||||
| Adhesive to paint or plastic (liner side) |
JL-2 high-performance acrylic adhesive with high initial and final tack for advanced automotive coating systems and low-energy surfaces | ||||
| Mass per unit area (approx.) | Type | EX 4008 F | EX 4008 T | ||
| Tape | 0.48 kg/m² | 0.48 kg/m² | |||
| Liner | 0.11 kg/m² | 0.16 kg/m² | |||
| Shelf Life | Following shelf life when stored in unopened original cartons at +4°C to +38°C and 0 - 95 % relative humidity is considered from the date of delivery: - Products with non-siliconized polyethylene liner for 24 months - Products with siliconized polyethylene- and paper liner for 12 months Level wound rolls must be stored under lay-flat conditions. |
||||
| Heat resistance | -- 40°C to +90°C, short term 120°C (both values are load-dependent) | ||||
| Splices |
Number of splices depends on order quantity and roll length. Level-wound rolls have 3-4 splices on average. Smaller order quantities (less than 400 m²) rolls could contain a significantly different number of splices. |
||||
Notice: The above were reference values. For detailed information, please contact HONGFU.
Products Application
The acrylic plus tape EX4008 Series is a type of adhesive tape specifically designed for automotive applications. This tape is commonly used for attaching exterior trim elements, such as moldings, emblems, and badges, onto vehicles. It offers strong adhesion to a variety of surfaces commonly found in automotive manufacturing, including metal, plastic, and painted surfaces.
Double-sided acrylic foam tape EX4008 for automotive provides a reliable and long-lasting solution for automotive manufacturers and repair professionals seeking to securely bond trim components without the need for mechanical fasteners or adhesives that require curing time.
Products Construction
Physical Properties
| Item | NKS-5### |
| Color | Clear/Grey/White/Black |
| Carrier | Acrylic foam |
| Adhesive | Acrylic adhesive |
| Total Thickness(mm) | 0.25-3.00 |
| Tensile Strength (GF/cm2) | ≥7,500 |
| Peel Adhesion (N/25mm) | ≥30 |
| Holding Power (Hr) | 72 |
| Elongation at Break (%) | 8-14 |
| Temperature Resistance (℃) | -20-160 |
| Width (mm) | 4-830(custom available) |
| Length (m) | 33(custom available) |
