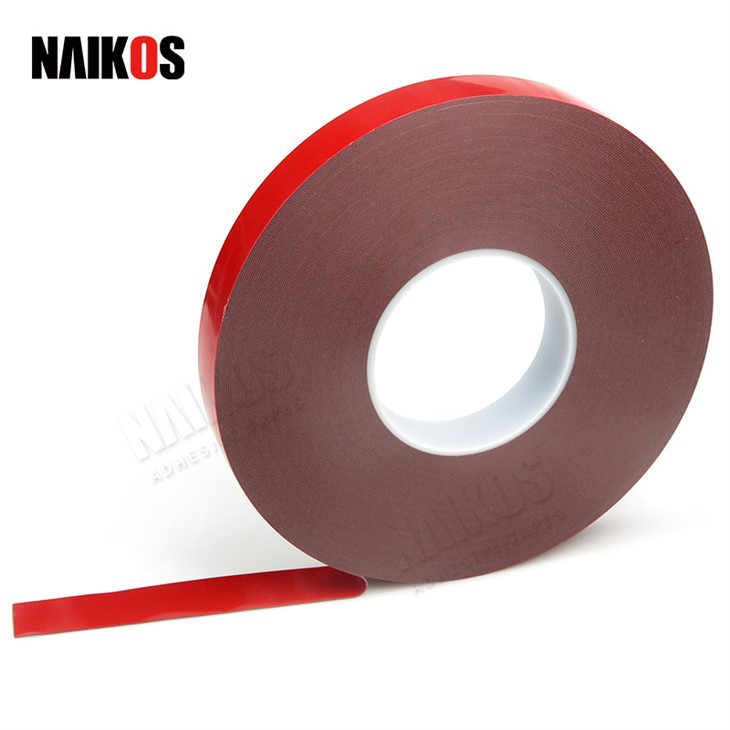

VHB GT6008 Acrylic Foam Double Sided Tape



Products Description

VHB GT6008 Acrylic foam double sided tape is made from gray acrylic foam and demonstrates good adhesion to many automotive surfaces, good inner strength, excellent long-term stability, and very good adaptability to the bonded areas. Typical applications are attachments of exterior add-on parts such as body side moldings, trims, or emblems/inserts. Based on the unique viscoelastic property of GT6000, stress is relaxed in the adhesive bond line so that durable bonds are formed.



Products Features

• Acrylic foam tape series GT6000 has good adhesion to many automotive paints.
• Operating temperature up to 120°C.
• Optimized acrylate foam core for easy application and good adaptation to component surfaces.
• Temperature, weather, UV, and solvent resistance.
• Automotive acrylic plus tape suitable for all manual and automatic application processes.



Products Advantages

• Acrylic foam adhesive tapes can compensate for stress due to their unique viscoelasticity. In contrast to foam adhesive tapes (PE, PU adhesive tapes), they can cope with significant elongation differences between substrates in the case of temperature changes.
• Easy to use: The tape can be easily processed in multiple ways to cut and apply.
• Good initial adhesion: The initial adhesion allows immediate further processing often without temporary support or fixtures.
• Freedom of design: enables the easy differentiation of vehicle models through modified trim attachments without change of
the body configuration.
• Sealing and damping properties: improvement of NVH properties.



Products Construction



Physical Properties

Typical Values	GT6006	GT6008	GT6012
Thickness	0.6 mm	0.8 mm	1.2 mm
90° Peel on Reference Stainless Steel plates (Specification values have to be determined on customer substrate)
20 min RT Liner Side (LS)	19 N/cm	22 N/cm	29 N/cm
72 h min RT Liner Side (LS)	20 N/cm	23 N/cm	29 N/cm
Density	700 kg/m³
Core	Acrylic Plus Tape
Color	Gray
Liner	F: Red polyethylene foil (only GT6008 and GT6012). P: Brown paper liner for die cuts; not suitable for lathe slitting.
Adhesive Liner Side (LS) and Non-Liner Side(NLS)	Self-stick, good initial and final adhesion on various paint systems and surfaces.
Shelf Life	Film liner Duration: 36 months from the date of manufacturing Conditions: 4 °C - 38 °C and 0 - 95 % RH in original unopened packaging – optimum: 23 °C ± 2 °C and 50% ± 4 % RH Paper liner Duration: 24 months from the date of manufacturing Conditions: application-specific – optimum 23 °C ± 2 °C and 50% ± 4 % RH Levelwound rolls are to be stored horizontally.
Temperature Resistance	-40°C to +120°C, short term 160°C (both values are load dependent).
Splices	Number of splices depends on order quantity and roll length. Level-wound rolls have 3-4 splices on average. Smaller order quantities (less than 400 m²) rolls could contain a significantly different number of splices

Notice: The above were reference values. For detailed information, please contact HONGFU.



Products Application

Automotive manufacturers use VHB GT6008 Acrylic foam double-sided tape for various purposes such as attaching trim, emblems, nameplates, and moldings to vehicles. It's also used in assembling automotive components where welding or mechanical fastening may not be feasible or desirable.

Proper surface preparation is crucial for achieving optimal adhesion with acrylic foam tapes. Surfaces should be clean, dry, and free from dust, grease, and other contaminants. Applying firm pressure during installation helps ensure a strong bond.

Products Construction



Physical Properties

Typical Values	GT6006	GT6008	GT6012
Thickness	0.6 mm	0.8 mm	1.2 mm
90° Peel on Reference Stainless Steel plates (Specification values have to be determined on customer substrate)
20 min RT Liner Side (LS)	19 N/cm	22 N/cm	29 N/cm
72 h min RT Liner Side (LS)	20 N/cm	23 N/cm	29 N/cm
Density	700 kg/m³
Core	Acrylic Plus Tape
Color	Gray
Liner	F: Red polyethylene foil (only GT6008 and GT6012). P: Brown paper liner for die cuts; not suitable for lathe slitting.
Adhesive Liner Side (LS) and Non-Liner Side(NLS)	Self-stick, good initial and final adhesion on various paint systems and surfaces.
Shelf Life	Film liner Duration: 36 months from the date of manufacturing Conditions: 4 °C - 38 °C and 0 - 95 % RH in original unopened packaging – optimum: 23 °C ± 2 °C and 50% ± 4 % RH Paper liner Duration: 24 months from the date of manufacturing Conditions: application-specific – optimum 23 °C ± 2 °C and 50% ± 4 % RH Levelwound rolls are to be stored horizontally.
Temperature Resistance	-40°C to +120°C, short term 160°C (both values are load dependent).
Splices	Number of splices depends on order quantity and roll length. Level-wound rolls have 3-4 splices on average. Smaller order quantities (less than 400 m²) rolls could contain a significantly different number of splices

Notice: The above were reference values. For detailed information, please contact HONGFU.
