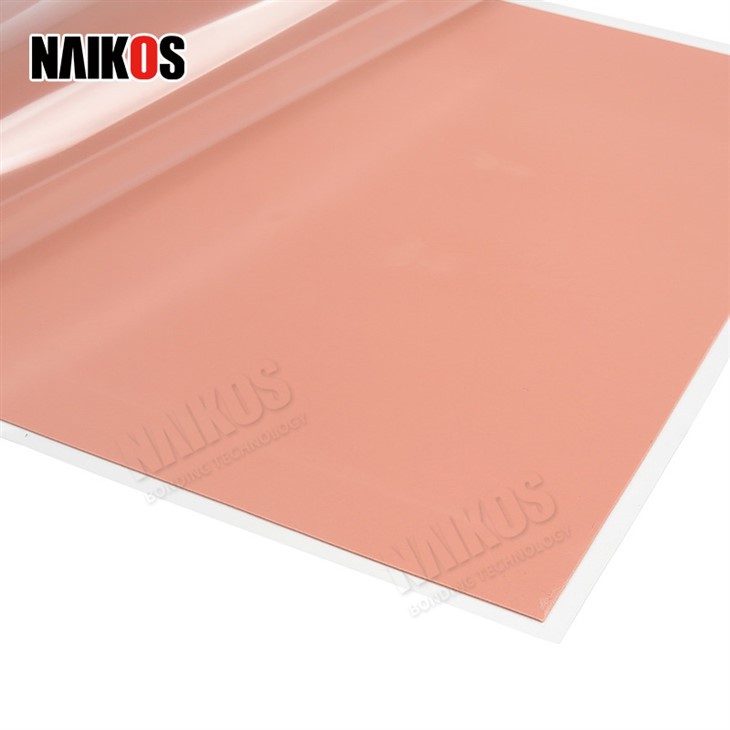

Silicone Thermal Conductive Pad

CNTAPES is one of the excellent manufacturers and suppliers of silicone thermal conductive pad in China, which is equipped with a professional factory and advanced equipment. We aims at providing you with high quality products with well heat resistance and strong durability which is easy to process. Welcome to buy tapes with us at competitive price.



A silicone thermal conductive pad is an innovative solution for heat dissipation and management in electronic devices. It is soft, self-sticky, and elastic. A thermal conductive pad is a highly effective thermal interface material (TIM) It can fill the gap between heat-generating components and heat sinks, metal mechanisms, and shell or other cooling devices. The heat can be transferred out speedily to improve the electronic components' working efficiency and prolong the life span of the equipment. that provides conformal and reliable thermal management in various applications.



- High thermal conductivity: Silicone thermal conductive pad offers a thermal conductivity of up to 5 W/mK, making it highly efficient in heat dissipation and management.
- Soft and flexible: The pad is soft and flexible, ensuring excellent thermal contact with the device surface despite slight surface irregularities.
- Electrical insulation: The thermal pad provides excellent insulation between the two surfaces in contact, protecting the device from any electrical damage.
- Stable and durable: The silicone thermal pad has stable thermal properties even after long-term usage and is highly durable, ensuring a longer lifespan for the device.

Item	NKS-###-PAD-TC	NKS-###-PAD-MTC	NKS-###-PAD-HTC	Test Method
Reinforced Carrier	N/A	N/A	N/A	---
Pad Type	Silicone Polymer	Silicone Polymer	Silicone Polymer	---
Thickness(mm)	0.30~12.00	0.30~5.0	0.30~3.0	ASTM D 374
Color	Grey/Pink/Blue/Black	Grey/Pink/Blue/Black	Grey/Pink/Blue/Black	VISUAL
Density(g/cc)	1.8~2.8	3.0	3.2~3.5	ASTM D792
Hardness(Shore C)	30±5	25±5	25±5	ASTM D2240
Thermal Conductivity(W/m-k)	1.0~2.5	2.0~3.0	3.0~15.0	ASTM D2240
Voltage Resistance(KV/mm)	＞4.0	＞4.0	＞4.0	ASTM D149
Temperature Resistance (℃/℉)	-40~+220(℃) -104~+428(℉)	-40~+220(℃) -104~+428(℉)	-40~+220(℃) -104~+428(℉)	ASTM D5470
Volume Resistance(Ω NaN)	1.0*1011	3.1*1011	3.1*1011	ASTM D257
Flame Rating	V-0	V-0	V-0	UL-94
Standard Size(mm)	200*400/320x320(Customized  Available)

Note: The above data are general values ​​of product testing are for reference only, and do not represent the actual values ​​of this product.





- Easy installation: The pad is easy to install and requires no additional adhesive or thermal grease.
- Cost-effective: Silicone Thermal Conductive Pad is more cost-effective than other heat dissipation solutions.
- Customizable: The pad can be customized to fit the exact shape and size of the device, ensuring efficient coverage and heat dissipation.
- Environmentally friendly: The pad is made up of eco-friendly materials and does not contain any hazardous substances, ensuring environmental safety.



Silicone thermal conductive pad is widely used in various electronic devices and applications that require efficient thermal management. Some of the common applications include:
- LED lighting
- Computer components like CPUs, GPUs, and Chipsets
- Automotive electronics
- Medical devices
- Telecom and networking equipment
- Power electronics like inverters, converters, and rectifiers.

A silicone thermal conductive pad is an efficient and reliable solution that offers excellent thermal management in electronic applications. With its high thermal conductivity, excellent electrical insulation, and flexible characteristics, it has become a popular choice among engineers and designers for their heat dissipation requirements.



Packaging & Shipping

We can provide different kinds of packaging according to customer's requests, such as labeling, barcode, individual packing, and mailbox packing, you can give us your instructions, and we will follow up on your requests.

Different shipping ways are available, small quantities of orders will be delivered to you by express, and bulk goods will be delivered to you by sea, we will talk about the delivery method before we dispatch the goods.

Product Properties

Item	NKS-###-PAD-TC	NKS-###-PAD-MTC	NKS-###-PAD-HTC	Test Method
Reinforced Carrier	N/A	N/A	N/A	---
Pad Type	Silicone Polymer	Silicone Polymer	Silicone Polymer	---
Thickness(mm)	0.30~12.00	0.30~5.0	0.30~3.0	ASTM D 374
Color	Grey/Pink/Blue/Black	Grey/Pink/Blue/Black	Grey/Pink/Blue/Black	VISUAL
Density(g/cc)	1.8~2.8	3.0	3.2~3.5	ASTM D792
Hardness(Shore C)	30±5	25±5	25±5	ASTM D2240
Thermal Conductivity(W/m-k)	1.0~2.5	2.0~3.0	3.0~15.0	ASTM D2240
Voltage Resistance(KV/mm)	＞4.0	＞4.0	＞4.0	ASTM D149
Temperature Resistance (℃/℉)	-40~+220(℃) -104~+428(℉)	-40~+220(℃) -104~+428(℉)	-40~+220(℃) -104~+428(℉)	ASTM D5470
Volume Resistance(Ω NaN)	1.0*1011	3.1*1011	3.1*1011	ASTM D257
Flame Rating	V-0	V-0	V-0	UL-94
Standard Size(mm)	200*400/320x320(Customized  Available)
