* Thermal conductivity for fast heat transfer in a short time. * High temperature performance in -40 ℃ - 220 ℃ will not melt. * Contact with any electrical traces wouldn’t result in damage of any sort. * Non-toxic, odorless, anti-corrosion, wear-resistant, anti-static, fire retardant, compression, good insulation.
Send Inquiry
Products Description

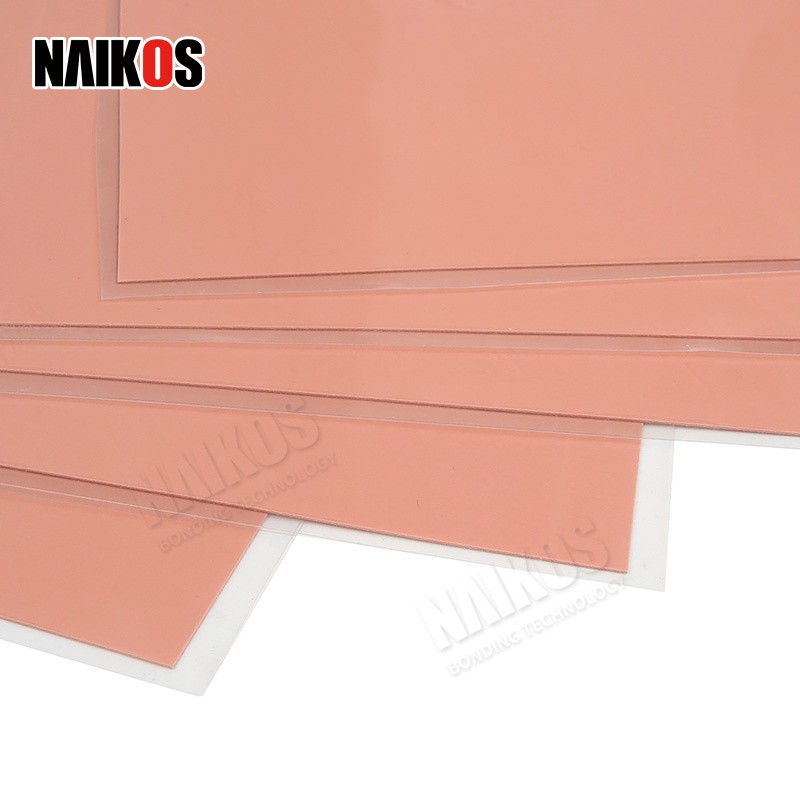

Soft High thermally conductive silicone pads are a type of gap-filling material that is specifically designed to conduct heat effectively. These pads are made from silicone, which is a highly thermal conducting material that provides great thermal management results.
The distinguishing feature of thermally conductive silicone pads is their ability to maintain softness and flexibility while providing excellent thermal conductivity. These pads are designed to be easy to apply, making them an ideal choice for a wide range of applications.
Feature
High thermal conductivity
The high thermal conductivity makes thermal silicone pads an ideal choice for applications where heat dissipation is essential. The high thermal conductivity of these pads ensures that heat generated by the application is dissipated effectively and efficiently.
Softness and flexibility
Thermal pads maintain their softness and flexibility over time, making them ideal for a range of applications that involve repeated mechanical stress. Their softness and flexibility also make them ideal for applications that require thermal management in confined spaces.
Products Properties
|
Item |
NKS-###-PAD-TC |
NKS-###-PAD-MTC |
NKS-###-PAD-HTC |
Test Method |
|
Reinforced Carrier |
N/A |
N/A |
N/A |
--- |
|
Pad Type |
Silicone Polymer |
Silicone Polymer |
Silicone Polymer |
--- |
|
Thickness(mm) |
0.30~12.00 |
0.30~5.0 |
0.30~3.0 |
ASTM D 374 |
|
Color |
Grey/Pink/Blue/Black |
Grey/Pink/Blue/Black |
Grey/Pink/Blue/Black |
VISUAL |
|
Density(g/cc) |
1.8~2.8 |
3.0 |
3.2~3.5 |
ASTM D792 |
|
Hardness(Shore C) |
30±5 |
25±5 |
25±5 |
ASTM D2240 |
|
Thermal Conductivity(W/m-k) |
1.0~2.5 |
2.0~3.0 |
3.0~15.0 |
ASTM D2240 |
|
Voltage Resistance(KV/mm) |
＞4.0 |
＞4.0 |
＞4.0 |
ASTM D149 |
|
Temperature Resistance (℃/℉) |
-40~+220(℃) -104~+428(℉) |
-40~+220(℃) -104~+428(℉) |
-40~+220(℃) -104~+428(℉) |
ASTM D5470 |
|
Volume Resistance(Ω NaN) |
1.0*1011 |
3.1*1011 |
3.1*1011 |
ASTM D257 |
|
Flame Rating |
V-0 |
V-0 |
V-0 |
UL-94 |
|
Standard Size(mm) |
200*400/320x320(Customized Available) |
|||
Application
* High-Power products like LED lights, LED TV, etc.
* PDP, LCD, Laptop, PC, Communication hardware equipment, Routers, etc.
* IC, CPU, COP, Capacitance, MOS, Power Supply Module, Server, Player, Mobile Phone, etc
Soft High thermally conductive silicone pads are highly versatile gap-filling materials that combine excellent thermal conductivity with softness and flexibility. Their ease of application, environmentally friendly design, and good electrical insulation make them an ideal choice for a wide range of applications where heat dissipation is essential.
Product Properties
|
Item |
NKS-###-PAD-TC |
NKS-###-PAD-MTC |
NKS-###-PAD-HTC |
Test Method |
|
Reinforced Carrier |
N/A |
N/A |
N/A |
--- |
|
Pad Type |
Silicone Polymer |
Silicone Polymer |
Silicone Polymer |
--- |
|
Thickness(mm) |
0.30~12.00 |
0.30~5.0 |
0.30~3.0 |
ASTM D 374 |
|
Color |
Grey/Pink/Blue/Black |
Grey/Pink/Blue/Black |
Grey/Pink/Blue/Black |
VISUAL |
|
Density(g/cc) |
1.8~2.8 |
3.0 |
3.2~3.5 |
ASTM D792 |
|
Hardness(Shore C) |
30±5 |
25±5 |
25±5 |
ASTM D2240 |
|
Thermal Conductivity(W/m-k) |
1.0~2.5 |
2.0~3.0 |
3.0~15.0 |
ASTM D2240 |
|
Voltage Resistance(KV/mm) |
＞4.0 |
＞4.0 |
＞4.0 |
ASTM D149 |
|
Temperature Resistance (℃/℉) |
-40~+220(℃) -104~+428(℉) |
-40~+220(℃) -104~+428(℉) |
-40~+220(℃) -104~+428(℉) |
ASTM D5470 |
|
Volume Resistance(Ω NaN) |
1.0*1011 |
3.1*1011 |
3.1*1011 |
ASTM D257 |
|
Flame Rating |
V-0 |
V-0 |
V-0 |
UL-94 |
|
Standard Size(mm) |
200*400/320x320(Customized Available) |
|||
