* Excellent thermal conductivity * Wide operating temperature range * Thin and flexible, adaptable to complex designs * Can be customized according to specific requirements
Send Inquiry
Products Description

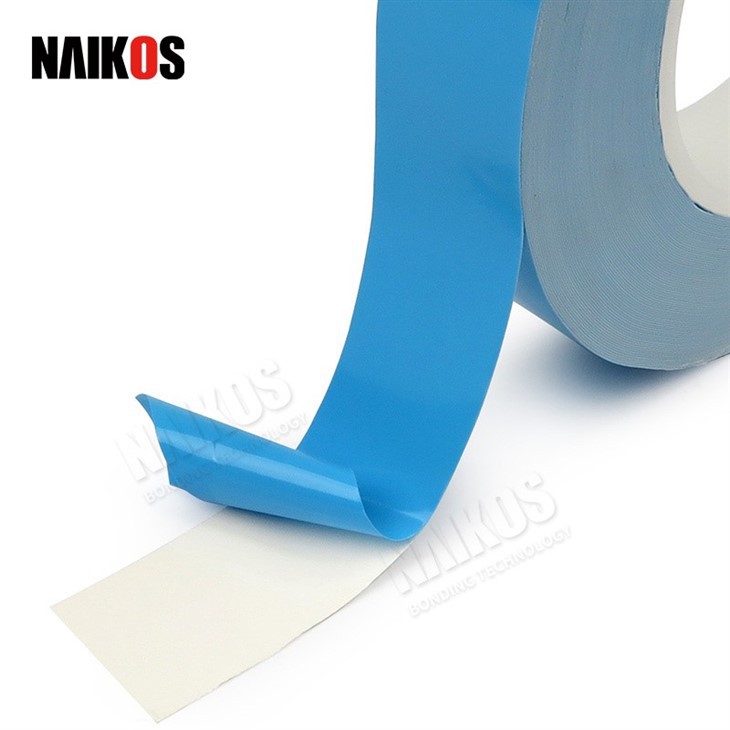

High-performance thermal conductive tape is an advanced thermal interface material (TIM) designed to efficiently transfer heat from electronic components to heat sinks or chassis. Unlike traditional adhesives, it combines strong bonding power with exceptional thermal conductivity, making it ideal for applications requiring heat dissipation and mechanical stability.
Feature
Efficient heat dissipation, extending equipment life
Thermal conductive tape acts as a bridge between heat-generating components (e.g., CPUs, LEDs) and cooling systems, reducing hotspots by 20-35% (based on industry thermal imaging tests).
Strong adhesion
The adhesive tape has a strong and reliable bond that can withstand high temperatures and vibration. It ensures long-lasting and secure bonding.
Insulation withstands voltage to ensure safety
This electrically insulating thermal tape prevents short circuits while maintaining dielectric strength up to >5 kV/mm, critical for high-voltage applications like power converters and EV batteries.
Thin and flexible, adaptable to complex designs
With thickness options from 0.1mm to 0.5mm, the tape conforms to uneven surfaces in compact devices (e.g., smartphones, drones), replacing bulky thermal pads.

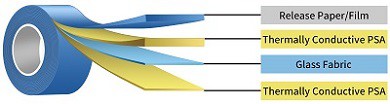

Product Construction
Physical Properties
| Item | NKS-## | NKS-##N | Test Method |
|
Carrier |
Glass Fabric | N/A | --- |
|
Adhesive |
Thermally Conductive PSA | Thermally Conductive PSA | --- |
| Total thickness(mm) | 0.10~0.50 | 0.05~0.40 | ASTM D374 |
| Color | White | White | VISUAL |
| Release Liner | Blue PE Film | White Release Paper | VISUAL |
|
Adhesion (N/25mm) |
12~18 | 12~18 | PST-101 |
|
Thermal Conductivity(W/m-k) |
1.2 | 1.2 | ASTM D22470 |
|
Voltage Resistance(KV/mm) |
3.5~8.0 | 3.5~8.0 | ASTM D149 |
|
Temperature Resistance(Short Term, ℃/℉) |
120(℃) 248(℉) |
120(℃) 248(℉) |
EN344 |
|
Standard width(mm) |
2~1030(Customized Available) | ||
|
Standard length(m) |
25/50(Customized Available) | ||
Application
High-performance thermal conductive tape application scenarios and industry coverage
Consumer electronics: Fix heat spreaders in laptops/tablets, preventing throttling during high-performance tasks.
LED lighting: Attach LED chips to aluminum substrates, improving lumen output stability.
Automotive electronics: Secure battery modules in EVs, ensuring thermal management under extreme temperatures.
Industrial equipment: Bond heat sinks to IGBT modules in solar inverters, reducing thermal resistance by 15%.
Why Choose Us?
1. Here you will find the most competitive factory price, which is almost equal to the actual cost.
2. We will make a strict schedule for your order to 100% ensure timely delivery.
3. We can make the tape into the size or shapes as requested.
4. You will be kept updated on the production state during the whole production process.
5. Over 12 years of tape manufacturing.
6. Prompt reply within 12 hours.
7. Custom logo printing is accepted.
| Item | NKS-## | NKS-##N | Test Method |
|
Carrier |
Glass Fabric | N/A | --- |
|
Adhesive |
Thermally Conductive PSA | Thermally Conductive PSA | --- |
| Total thickness(mm) | 0.10~0.50 | 0.05~0.40 | ASTM D374 |
| Color | White | White | VISUAL |
| Release Liner | Blue PE Film | White Release Paper | VISUAL |
|
Adhesion (N/25mm) |
12~18 | 12~18 | PST-101 |
|
Thermal Conductivity(W/m-k) |
1.2 | 1.2 | ASTM D22470 |
|
Voltage Resistance(KV/mm) |
3.5~8.0 | 3.5~8.0 | ASTM D149 |
|
Temperature Resistance(Short Term, ℃/℉) |
120(℃) 248(℉) |
120(℃) 248(℉) |
EN344 |
|
Standard width(mm) |
2~1030(Customized Available) | ||
|
Standard length(m) |
25/50(Customized Available) | ||
Notice: The above were reference values. For detailed information, please contact HONGFU.
