* High Thermal Conductivity: 400 W/m-k * Easy to process into customized specification. * EMI Shielding which can protect sensitive electronic components.
Send Inquiry
Product Descripcription
Nano-carbonated copper foil thermally conductive adhesive tape utilized copper foil as a carrier and coated with thermally conductive nano-carbon and acrylic adhesive. It is provided with high thermal conductivity, shielding property, and good adhesion. It provides an excellent heat-transfer path between the heat-generator and heat sink and forms a thermal conductive module together with the heat sink and mounting part(fan, etc.). It is the best thermal conductive material for PDP and smartphones.
Features
* High Thermal Conductivity: 400 W/m-k
* EMI Shielding which can protect sensitive electronic components.
* Easy to process into customized specifications.
Application
* Electronics like Smart Phones, PDPs, Telecommunications.
* Notebook thermally conductive module, LCD, LED light, etc.
Construction
Nano-Carbonated Copper Foil Acrylic Adhesive Release Film |
|

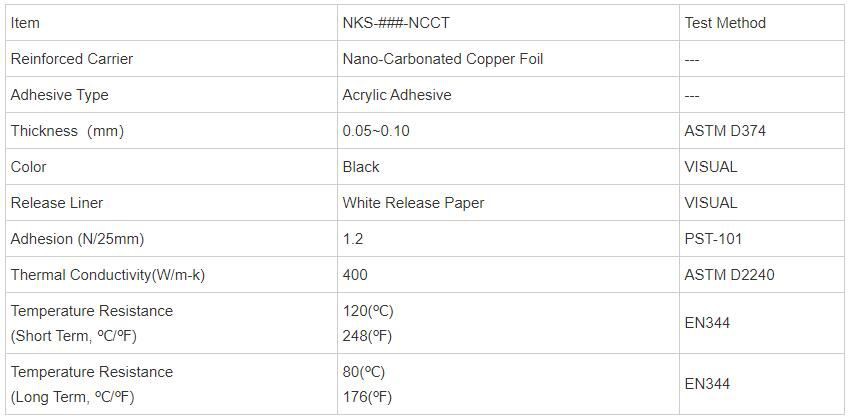

Physical Properties
Item | NKS-###-NCCT | Test Method |
Reinforced Carrier | Nano-Carbonated Copper Foil | --- |
Adhesive Type | Acrylic Adhesive | --- |
Thickness（mm） | 0.05~0.10 | ASTM D374 |
Color | Black | VISUAL |
Release Liner | White Release Paper | VISUAL |
Adhesion (N/25mm) | 1.2 | PST-101 |
Thermal Conductivity(W/m-k) | 400 | ASTM D2240 |
Temperature Resistance (Short Term, ℃/℉） | 120(℃) 248(℉) | EN344 |
Temperature Resistance (Long Term, ℃/℉） | 80(℃) 176(℉) | EN344 |
Note: The above technical information and data should be considered representative or typical only and should not be used.
If you find our copper foil thermally tape interested, please fill the below blank space with your detailed requirements. HONGFU’s team would offer different solutions to you within 12 hours. Free samples are also available.
HONGFU is one of the excellent manufacturers and suppliers of nano-carbonated copper foil thermally conductive adhesive tape in China, which is equipped with a professional factory and advanced equipment. We aim to provide you with high-quality products with well heat resistance and strong durability which is easy to process. Welcome to buy tapes with us at a competitive price.
