* Ultra-high peel strength * Extreme environmental adaptability * Sealing and moisture-proof performance * Excellent adhesion to metal, plastic, wood, leather, and paper, which is a hard-to-stick material
Send Inquiry
Products Description

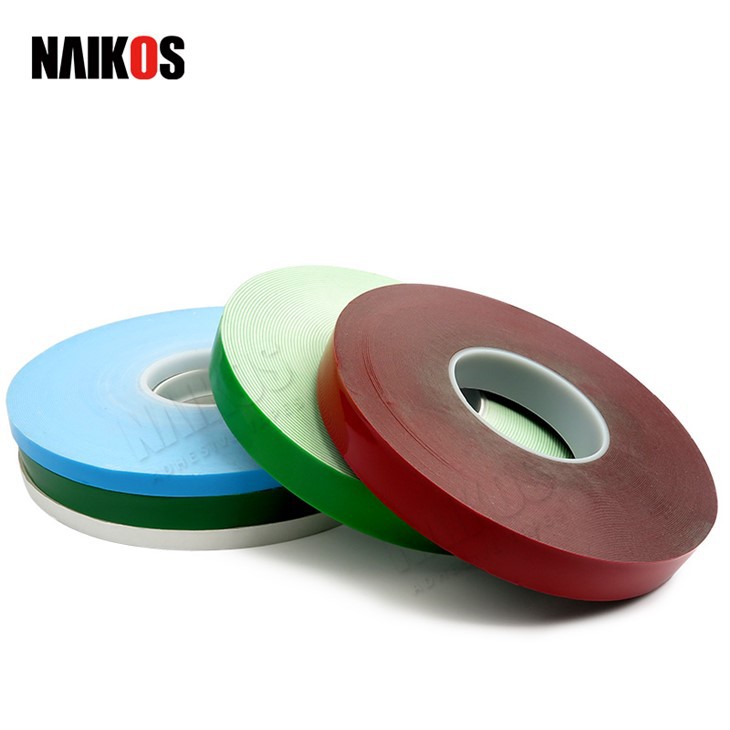

VHB foam double-sided tape is an acrylic-based closed-cell foam double-sided tape designed for permanent high-strength bonding. Its unique pressure-sensitive adhesive + elastic foam substrate structure can replace traditional processes such as welding and rivets, and is widely used in different material bonding scenarios in the fields of automobiles, electronics, and construction.
Products Feature
Ultra-high peel strength
VHB foam tape has high bonding strength and can withstand severe vibration and long-term load.
Extreme environmental adaptability
The VHB tape operating temperature range is -40℃~160℃, and the UV aging life is over 10 years.
Stress is evenly distributed
Foam substrate absorbs impact force and avoids the problem of local stress concentration caused by traditional mechanical fixation.
Sealing and moisture-proof performance
The closed-cell structure achieves an IP67 waterproof level, which is suitable for bonding outdoor display screens and car lampshades.
Lightweight and aesthetic
VHB tape double-sided thickness is optional from 0.25-3.0mm, which helps new energy vehicles reduce weight by 15%-20%.
Products Construction
Products Properties
| Item |
NKS-##V |
| Color |
Clear/Grey/White/Black |
| Carrier |
VHB Acrylic Foam |
| Adhesive |
Pressure Sensitive Acrylic Adhesive |
| Total Thickness (mm) |
0.4 - 3.0 |
|
Tensile Strength (gf/cm²) |
≥7,500 |
| Peel Adhesion (N/25mm) | ≥30 |
| Holding Power (Hr) |
＞24 |
| Elongation at Break(%) |
8-14 |
| Temperature Resistance (℃) |
-20℃-160℃ |
|
Width (mm) |
4- 800(Custom Available) |
| Standard Length (m) |
33(Custom Available) |
Note: The above data is the general value of product testing, it is only for reference and does not represent the actual value of this product.
Products Application
VHB foam double-sided tape for major application scenarios
Automobile manufacturing
Replace bolts to fix roof trims and spoilers to achieve weight reduction and noise reduction.
Electronic equipment assembly
Mobile phone middle frame and screen bonding.
Building curtain wall installation
20mm thick stone dry hanging load-bearing test passed EN 1348 standard, with a safe life of more than 25 years.
The rail transportation field
High-speed rail car interior bonding passed DIN 5510 fire protection certification, smoke density <50.
As a benchmark product for industrial bonding technology, VHB foam tape continues to promote the development of lightweight automobiles, miniaturization of consumer electronics, and green buildings.
Products Construction
Products Properties
| Item |
NKS-##V |
| Color |
Clear/Grey/White/Black |
| Carrier |
VHB Acrylic Foam |
| Adhesive |
Pressure Sensitive Acrylic Adhesive |
| Total Thickness (mm) |
0.4 - 3.0 |
|
Tensile Strength (gf/cm²) |
≥7,500 |
| Peel Adhesion (N/25mm) | ≥30 |
| Holding Power (Hr) |
＞24 |
| Elongation at Break(%) |
8-14 |
| Temperature Resistance (℃) |
-20℃-160℃ |
|
Width (mm) |
4- 800(Custom Available) |
| Standard Length (m) |
33(Custom Available) |
These values are measured values and not guaranteed values.
